Setting up your iATS payment integration

Setting up your iATS payment integration

Sumac can record payment information, and process credit card payments instantly. For example, you may want to use Sumac to process payments for donations, membership fees, or registrations. In order for Sumac to process payments, you must first open a merchant account with one of Sumac's supported payment processors: iATS or Stripe.


This article describes how to set up your integration with our payment partner iATS.

Setting up your integration

When your merchant account is opened, iATS provides you with a list of account numbers, IDs and passwords. Some of them are for logging into your iATS account. Others are used to configure a card swipe machine (if you've got one). Finally, others are for telling Sumac how to connect and process payment transactions.

Sumac requires your iATS Link User ID (an alphanumeric ID), and your iATS Link User Password (an alphanumeric password). Once you’ve retrieved these details, your Sumac Administrator must enter this information into your database.

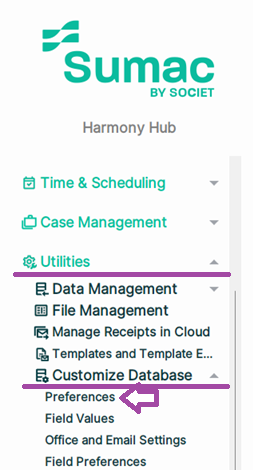

First, from your main Sumac console, expand Utilities > Customize Database > Preferences.

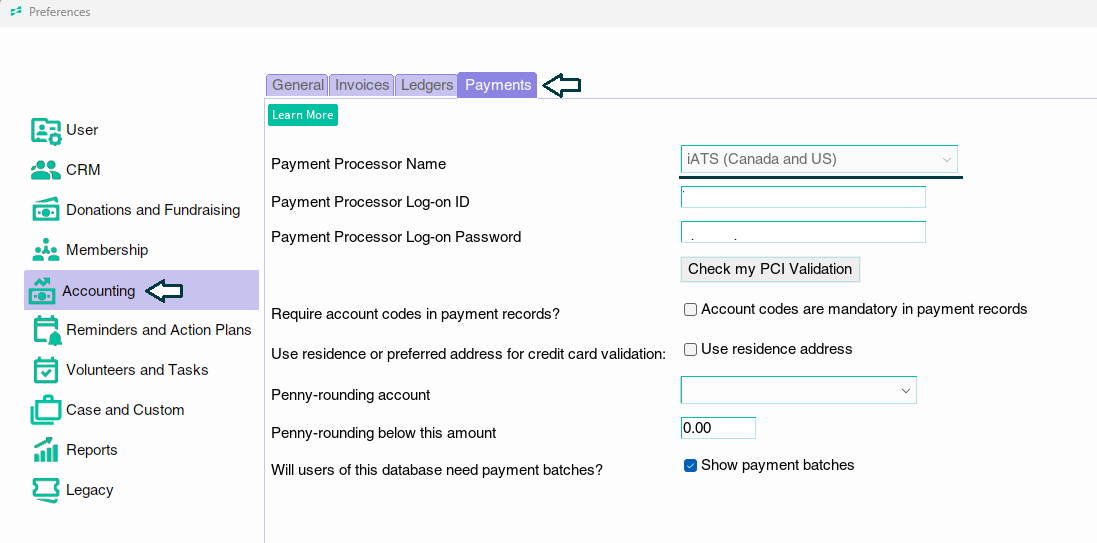

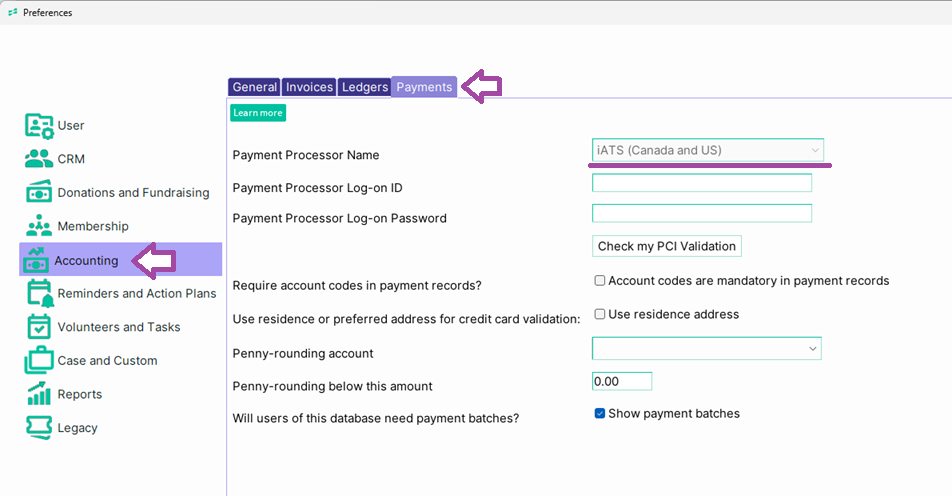

From the left side panel, choose Accounting, then go to the Payments tab. Open the “Payment Processor Name” drop-down menu and select “iATS.” Sumac will fill in iATS’ website details for you. Next, in the Payment Processor Log-on ID field, enter your iATS Link User ID. In the Payment Processor Log-on Password field, enter your iATS Link User Password.

Info

The Payments tab provides a few other preferences you may want to consider using. For example, if you wan to make Account Codes mandatory in payment records, put a check mark next to "Account Codes are mandatory in payment records."

One other option on this page is occasionally necessary for payment processing. When a payment processor requires address verification for processing credit cards, Sumac normally uses the contact's preferred address – either their residence or business address. If you want to force Sumac to always use the residence address, put a check mark next to "Use residence address."
Once you have completed the steps above, click OK to save these changes, then restart Sumac to ensure all these changes take effect. Now Sumac is configured to process payments!

Testing your iATS integration

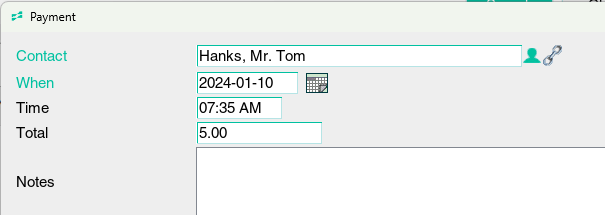

At this point, it's a good idea to test processing a payment to ensure that everything works properly. In your Sumac console, expand "Financial" and click "Payments." Click "New" to add a new Payment record.

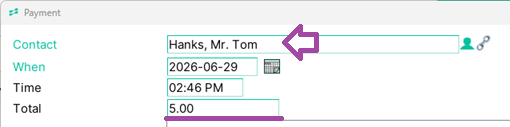

Choose a contact to test with, then enter an amount for this payment.

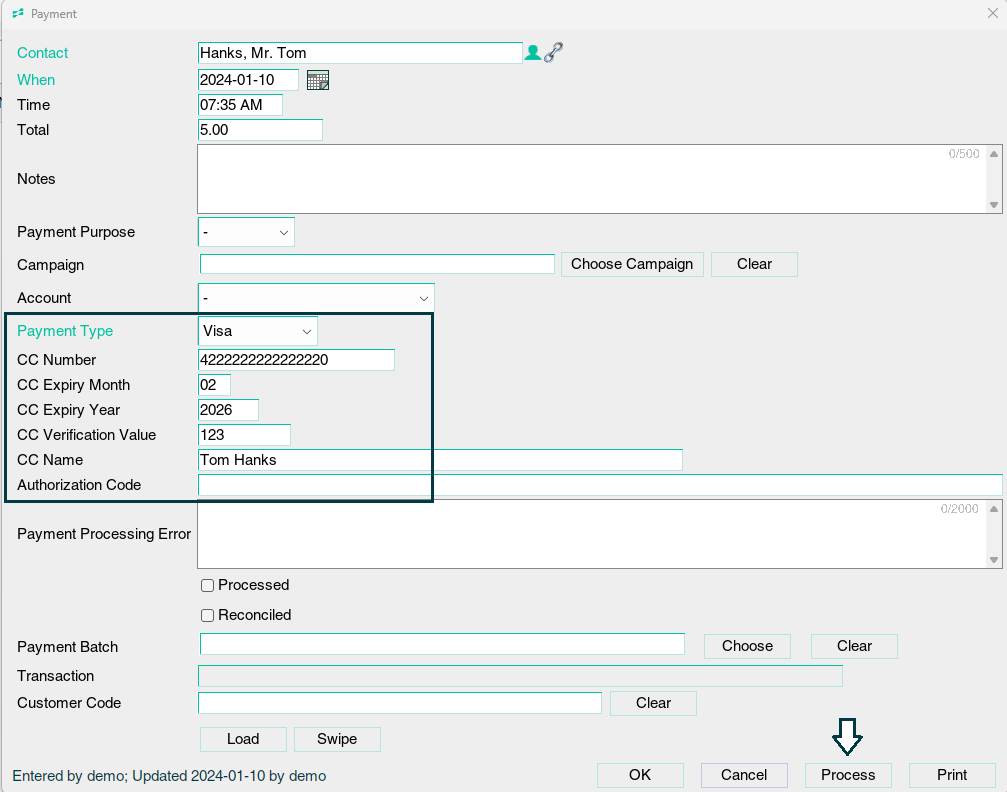

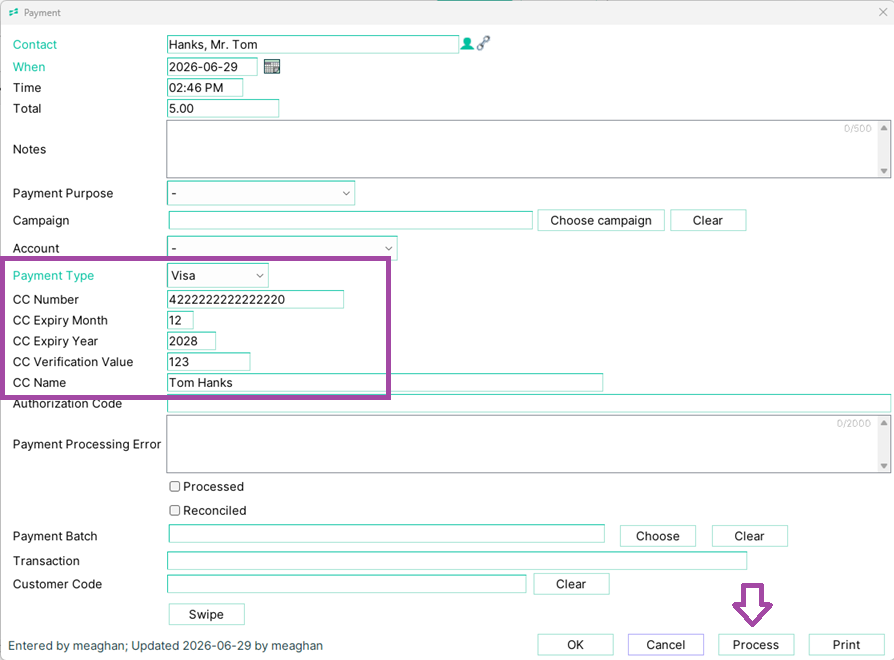

Choose a Payment Type that applies to a credit card (e.g. Visa). Then enter a credit card number, expiry month and year, verification, and the name for the credit card. When done, click "Process" to test processing this payment.
Notes
You should not use a real credit card number, as it may process a payment on that credit card. We suggest using a credit card number designated for testing purposes. iATS may provide you with test account numbers and transactions so that you can confirm that credit card processing is working properly.


Sumac should give you an error message saying that the credit card information cannot be  authenticated. This is a good sign! It means that Sumac is correctly set up for processing payments. It was able to send the credit card information to iATS and receive iATS' response.
Info
Any time a payment is not processed successfully, Sumac receives the error message from iATS and displays it in the payment record.
When a payment is processed successfully, then the authorization code is filled in, and the transaction is closed and saved to the database.

Considerations for web integration

If you are integrating Sumac with your website for online donations or membership renewals, it's a good idea to confirm that the Payment Types you have set up are using the correct Payment Processor Code for iATS.
Notes
Note: the Payment Processor Code comes built into Sumac. In nearly all cases, you do not need to adjust anything for your Payment Types.
However, if you would like to double-check, need to make adjustments, or if you're setting up a brand new Payment Type that was not built into Sumac, follow the steps below.
  1. From your Sumac console, expand Utilities > Customize Database > Field Values. Choose the Area: Payments, then choose the Field: Payment Types.

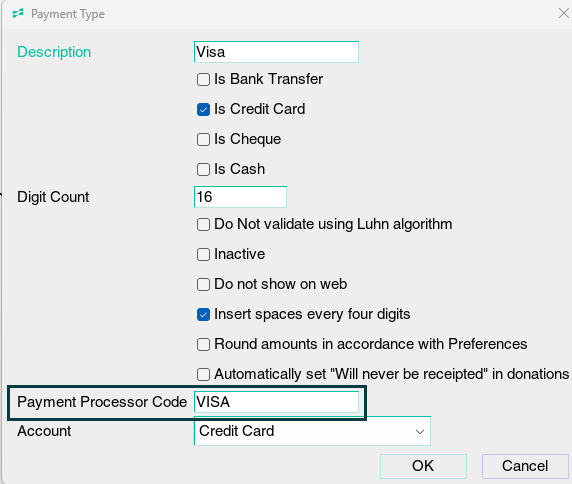

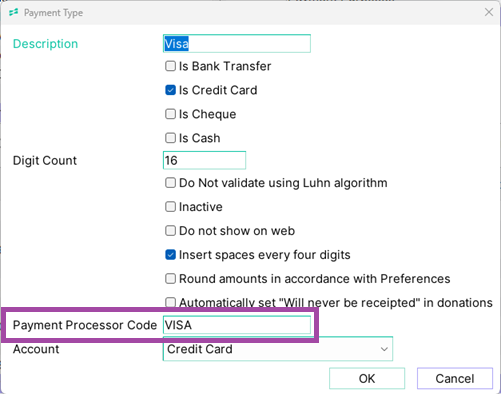

  2. Double-click an existing credit card Payment Type, and review the information in the Payment Processor Code field.
  3. If you notice a change is needed, make the necessary change to the Payment Processor Code as defined by iATS, and click OK to save it.
